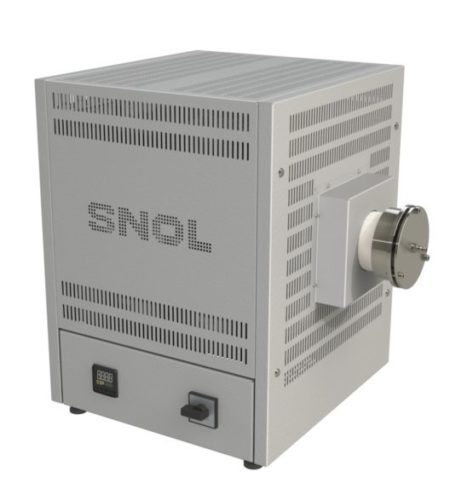

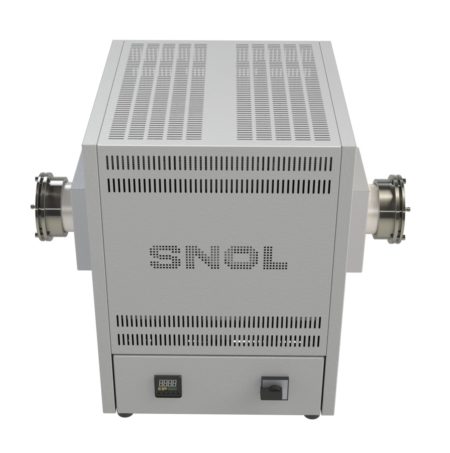

SNOL 0,2/1250 LXC04 – Laboratorieugn 1250°C

High temperature horizontal electric tube furnace SNOL 0.2/1250 is designed for materials heat treatment up to 1250^◦C. This model is reliable with robust ceramic chamber (tube). Furnace equipped with covers of tubes. Furnace can be used in laboratories, medicine, educational institutions, and industry.

BASIC MODEL

Ceramic tube chamber
Microprocessor – temperature controller
High-quality, ecological thermal insulation material
Low electric power consumption
Short heating up/cooling down period
High degree of accuracy
Outside casing – metal sheet, powder painted grey
1 year warranty

OPTIONS

Buzzer
Digital timer
Protection against overheating
Data recorder
Data communication/USB
Calibration of temperature measurement system
Table for supporting the furnace
Additional 1 year warranty

SNOL 0,2/1250 LXC04 – Laboratorieugn 1250°C

Technical data	Dimension	SNOL 0,2/1250 LXC04
Useful volume	Liter	0,19
Rated power not more then, kW	kW	3,7
Rated supply voltage, V	Volt	230
Rated frequency, Hz	Hz	50
Number of phases	–	1
Continuous operating temperature °C	°C	1250
Maximum temperature	°C	1250
Working chamber material	–	Ceramic
Working chamber surroundings	–	air
Maximum heating- up time (without charge), min	Min.	50
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C	± °C	1
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than ± °C	±°C	10
Furnace working chamber dimensions:
Depth mm	mm	200
Diameter mm	mm	35
Furnace dimensions:
width mm	mm	675
depth mm	mm	545
height mm	mm	565
Mass netto	kg	38
