Name: Shakers (Program), SKC-6075/6100/6200/7075/7100/7200 - LabTeamet
SKU: MS-SKC-6075-6100-6200-7075-7100-7200

Beskrivning

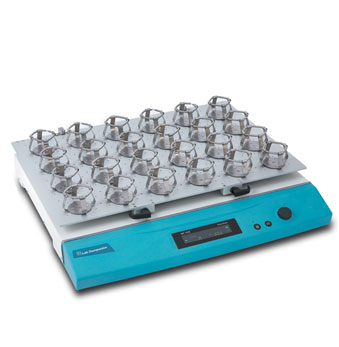

Shakers (Program), SKC-6075/6100/6200/7075/7100/7200

Labteamet_Skak_SKC-6075_6100_6200_7075_7100_7200-1

Control panel

Labteamet_Skak_SKC-6075_6100_6200_7075_7100_7200-2

Slide type universal platform (optional)

Labteamet_Skak_SKC-6075_6100_6200_7075_7100_7200-3

Progressive program operation

Programming parameters
Max. number of segments in one(1)pattern(cycle)		20
Max. number of patterns(cycle)saved		20
Shaking motion- Forward & Backward, Pause	Time	1min. to 99hr. 59min.
Shaking motion- Forward & Backward, Pause	rpm	30 to 500

Performance

Microprocessor PID control maintaining constant speed
Competitive high shaking speed up to 500 rpm.
Orbital shaking motion in various diameter.
– 19mm for SKC-6075/7075
– 25mm for SKC-6100/7100
– 50mm for SKC-6200/7200
Wide speed range even with heavy workload.
– Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
– Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
Pleasant test environment by the smooth acceleration and deceleration control.
– Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
Exceptional low-profile design (only 12cm from bottom to platform) minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

User friendly control panel.
– Lab Companion’s unique VFD-bright, clear, easy to read.
– Durable membrane touch switch and control knob.
Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples. (optional)
Repetitive task can be easily performed as the platform stops where it starts.
– Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Variety of accessories are available to meet application demands.

Safety

Shaking speed deviation alarm.
Over-current protection.

Model			SKC-6075	SKC-6100	SKC-6200	SKC-7075	SKC-7100	SKC-7200
Control system			PID feedback control
Display			VFD
Shaking system	Motion type		Orbital
	Amplitude size(mm / inch, dia)		19 / 0.75	25 / 1	50 / 2	19 / 0.75	25 / 1	50 / 2
	Speed range²⁾(rpm)		30 to 500
	Accuracy at 100 rpm		±1
Dimension	Platform(W×D) (mm / inch)	Small	580×520 / 22.8×20.5			755×520 / 29.7×20.5
	Platform(W×D) (mm / inch)	Large	660×520 / 26×20.5			885×520 / 34.8×20.5
	Body¹⁾(W×D×H) (mm / inch)		582.8×618 ×122.2			754.8×662×122.2
	Body¹⁾(W×D×H) (mm / inch)		22.9×24.3×4.8			29.7×26.1×4.8
	Net weight(kg / Ibs)		65 / 143.3			75 / 165.4
Electric requirements(230V, 50 / 60Hz)			0.4A
Cat. No.			AAH30105K	AAH30115K	AAH30125K	AAH30205K	AAH30215K	AAH30225K
Electric requirements(120V, 60Hz)			0.8A
Cat. No.			AAH30106U	AAH30116U	AAH30126U	AAH30206U	AAH30216U	AAH30226U

※ Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).

1) Main body dimension without accessories.

2) In case of operating at high speed (350 to 500 rpm), it is recommended to use wight increaser be fixed on the working surface.
