Name: ST500 Smart - Kylinkubator, 493 liter - LabTeamet
SKU: PE-ST-500-SMART

Beskrivning

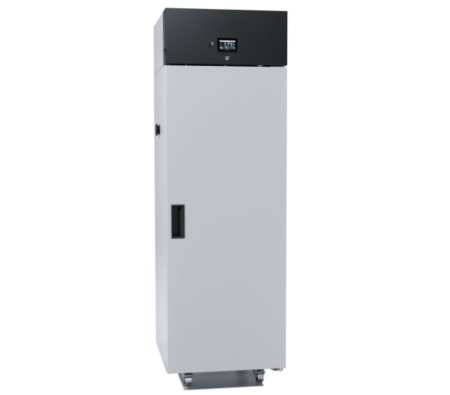

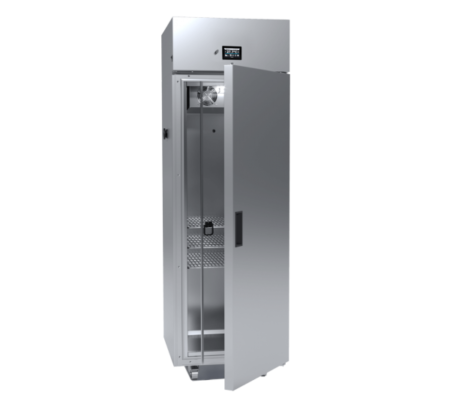

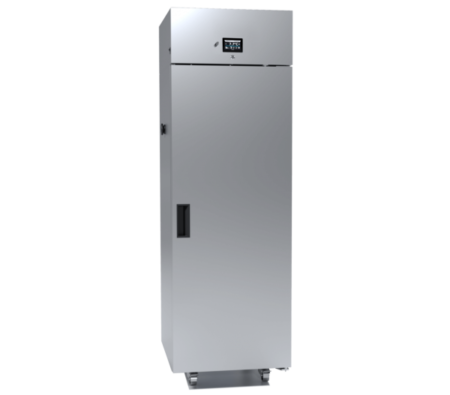

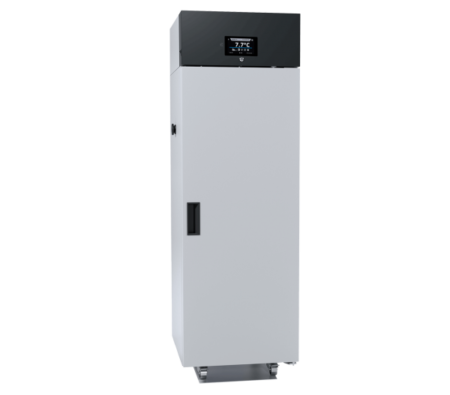

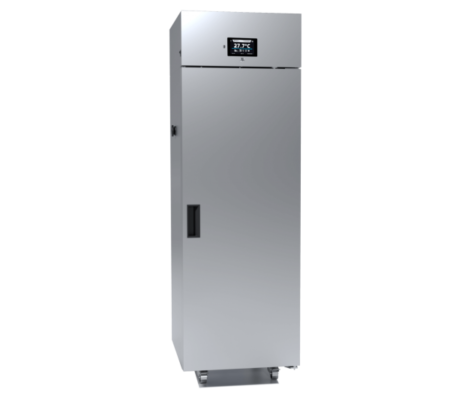

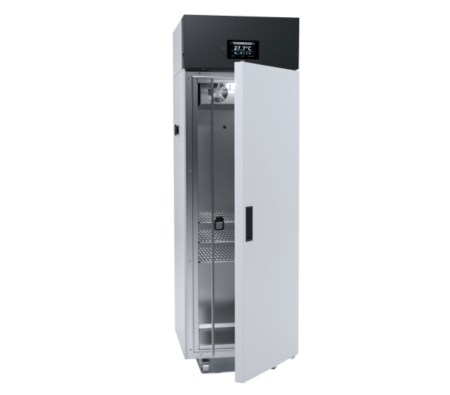

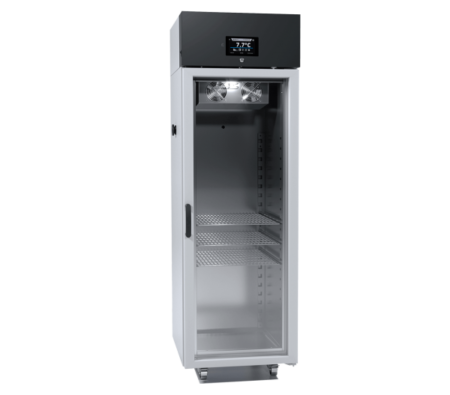

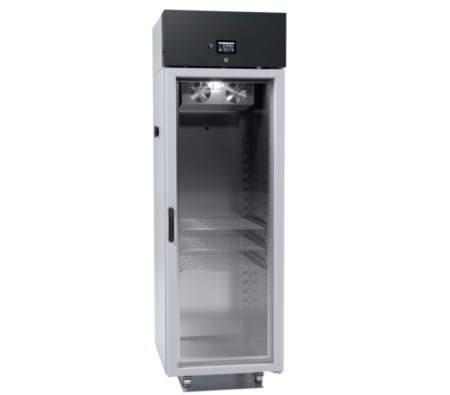

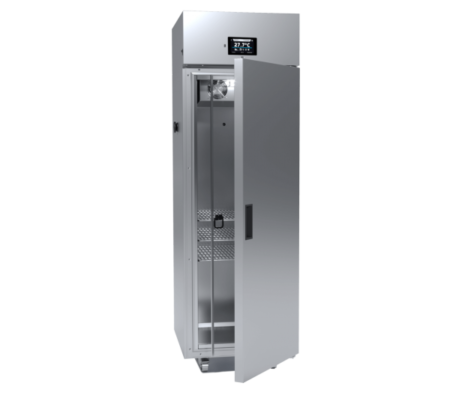

ST500 Smart – Kylinkubator Volym 493 liter

Standard equipment of ST 500
- temperature range +3…+40°C (+70°C in Smart PRO)
- chamber capacity 500 liters
- working capacity 469 liters
- quality control protocol (in +37°C)
- Over temperature protection 1.0 class (according to DIN 12880) for models B (basic) and C (comfort), 2.0 for models P (premium) and 3.3 class in Smart PRO
- open door alarm
- LAN port and USB port
- internal LED light
- access port to enter an external sensor (Ø30 mm) on the left side of the unit
- door lock
- wire shelves for models B (basic), stainless steel wire shelves (INOX) for models C (comfort) and P (premium)
- full external doors
- assembly kit for fixing to the wall
- WiFi communication (only Smart Pro)
- LAN cable (only Smart Pro)
- LabDesk software for, inter alia, downloading data to computer (only Smart Pro, for Smart version – optional)
- available models: : B (basic), C (comfort), P (premium)
- available controllers: Smart Or Smart PRO
special models:

FOT – photoperiodic system – day and night simulation

FIT – phytotron system – day and night simulation with intensity control

Options Smart

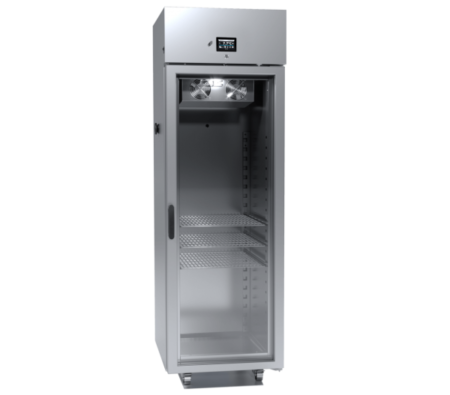

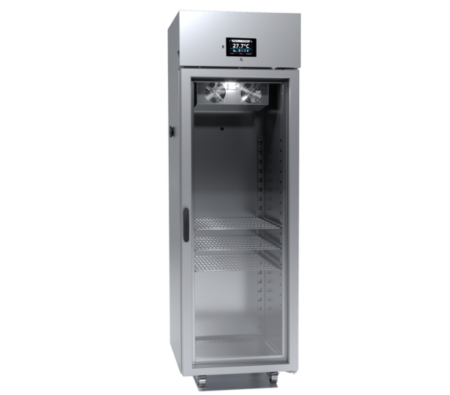

	Order number: */C	Internal glass door
	Order number: */A	External glass door
	Order number: */P	Wire shelf
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel cuvettes
	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides
	Order number: QLK*	Castors
	Order number: ST/70	Extended temperature range to 70°C
	Order number: */FOT	Photoperiodic system
	Order number: GNZ	Internal socket
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.3	Over temperature protection 3.3 class according to DIN 12880
	Order number: */RK	Chart recorder
	Order number: ZKM	Magnetic door lock
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control

Options Smart PRO

	Order number: */C	Internal glass door
	Order number: */A	External glass door
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel cuvettes
	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides
	Order number: QLK*	Castors
	Order number: */FIT	Phytotron system
	Order number: FIT/R3	FIT panels independent control
	Order number: GNZ	Internal socket
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */RK	Chart recorder
	Order number: ZKM	Magnetic door lock
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control
	Order number: CCTV	Camera inside the chamber
	Order number: CCTV CAM	Additional camera

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	500
working capacity [l]	469
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+40 / +70 (opcja)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,3
temperature variation at 37°C [+/-°C]*	1,0
temperature protection	class 1.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	solid / glass or double (option) /4/
interior
B Smart	aluminium
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	DIN 1.4301
PS Smart	DIN 1.4301
housing
B Smart	powder coated sheet
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	640
height B	1990
depth C	880
internal dims [mm]
width D	480
width D’	510
height E	1510
depth F	610
height I	1380

shelves (standard \| max)	3 \| 11
max shelf workload [kg] /2/	20
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	100
weight [kg]	105
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	650
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	500
working capacity [l]	469
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+70
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,3
temperature variation at 37°C [+/-°C]*	1,0
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	solid / glass or double (option) /4/
interior
P Smart PRO	DIN 1.4301
PS Smart PRO	DIN 1.4301
housing
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	640
height B	1990
depth C	880
internal dims [mm]
width D	480
width D’	510
height E	1510
depth F	610
height I	1380

shelves (standard \| max)	3 \| 11
max shelf workload [kg] /2/	20
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	100
weight [kg]	105
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	650
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

	Produktblad – Kylinkubator Pol-Eko ST500 SMART
	Produktblad – Kylinkubator Pol-Eko ST500 SMART PRO

	Pol-Eko komplett produktkatalog
	Produktinfo SMART_SMART-PRO
