Name: ST1450 SMART - Kylinkubator, 1460 liter - LabTeamet
SKU: PE-ST 1450-SMART

Beskrivning

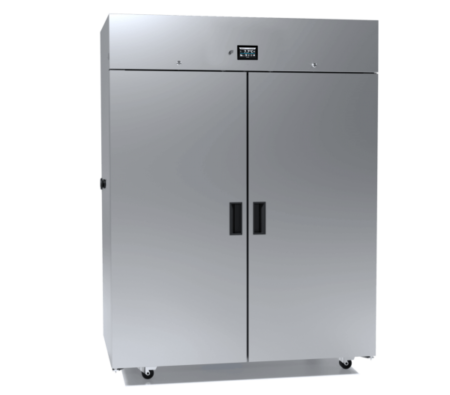

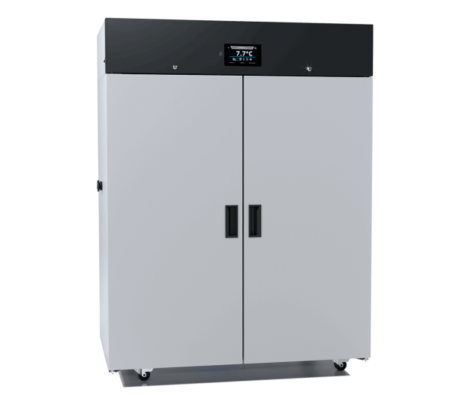

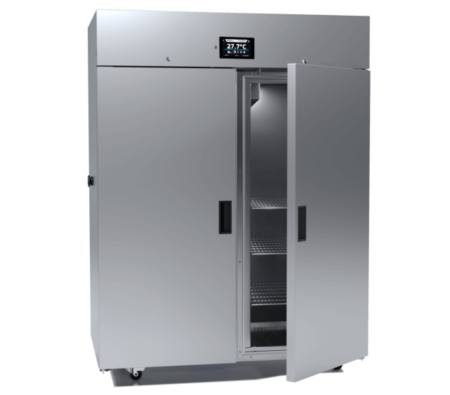

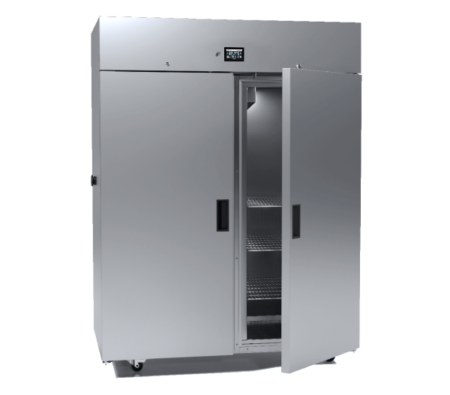

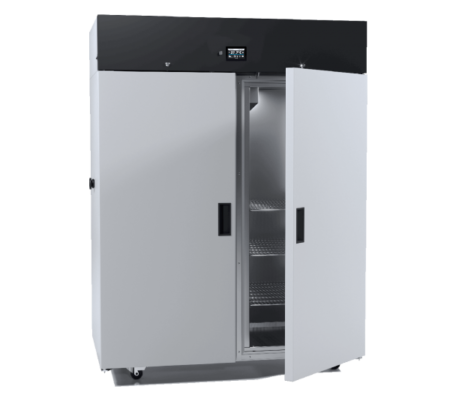

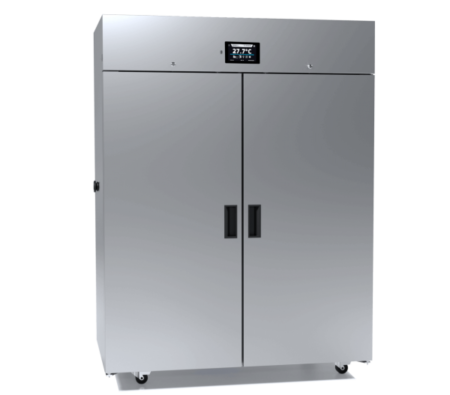

ST1450 Smart – Kylinkubator volym 1460 liter

Standard equipment of ST 1450

temperature range +3…+40°C (+70°C in Smart PRO)
chamber capacity 1540 liters
working capacity 1525 liters
quality control protocol (in +37°C)
Over temperature protection 1.0 class (according to DIN 12880) for models B (basic) and C (comfort), 2.0 for models P (premium) and 3.3 class in Smart PRO
open door alarm
castors
LAN port and USB port
internal LED light
access port to enter an external sensor (Ø30 mm) on the left side of the unit
door lock
wire shelves for models B (basic), stainless steel wire shelves (INOX) for models C (comfort) and P (premium)
full external doors
assembly kit for fixing to the wall
WiFi communication (only Smart Pro)
LAN cable (only Smart Pro)
LabDesk software for, inter alia, downloading data to computer (only Smart Pro, for Smart version – optional)
available models: : B (basic), C (comfort), P (premium)
available controllers: Smart Or Smart PRO

Special models:

FOT – photoperiodic system – day and night simulation

FIT – phytotron system – day and night simulation with intensity control

Options Smart

	Order number: */C	Internal glass door

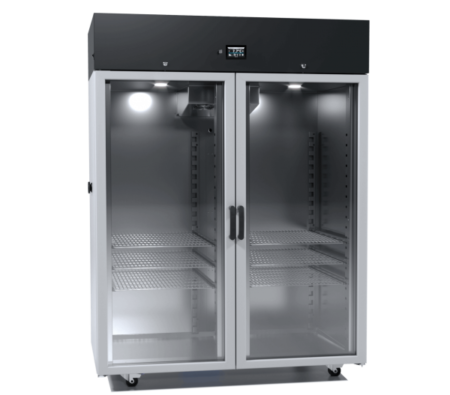

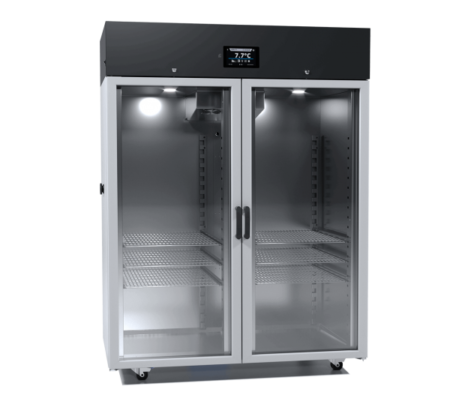

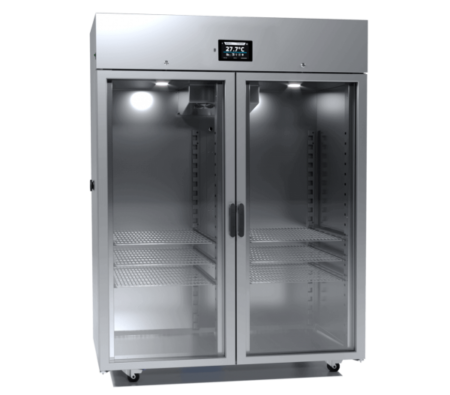

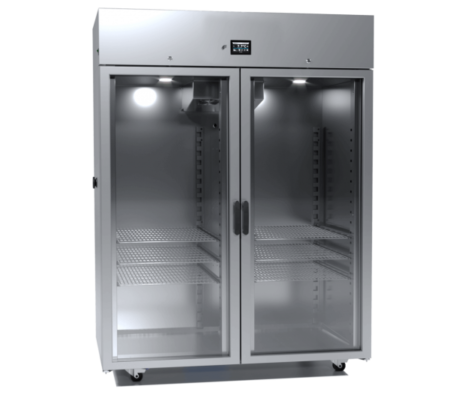

	Order number: */A	External glass door
	Order number: */P	Wire shelf
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel cuvettes
	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides

	Order number: ST/70	Extended temperature range to 70°C
	Order number: */FOT	Photoperiodic system
	Order number: GNZ	Internal socket
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.3	Over temperature protection 3.3 class according to DIN 12880
	Order number: */RK	Chart recorder
	Order number: ZKM	Magnetic door lock
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control

Options Smart PRO

	Order number: */C	Internal glass door
	Order number: */A	External glass door
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel cuvettes
	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides

	Order number: */FIT	Phytotron system
	Order number: FIT/R3	FIT panels independent control
	Order number: GNZ	Internal socket
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */RK	Chart recorder
	Order number: ZKM	Magnetic door lock
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control
	Order number: CCTV	Camera inside the chamber
	Order number: CCTV CAM	Additional camera

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	1540
working capacity [l]	1525
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+40 / +70 (opcja)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,3
temperature variation at 37°C [+/-°C]*	1,0
temperature protection	class 1.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	solid / glass or double (option) /4/
interior
B Smart	aluminium
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	DIN 1.4301
PS Smart	DIN 1.4301
housing
B Smart	powder coated sheet
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	1440
height B	1940
depth C	1060
internal dims [mm]
width D	1270
width D’	1340
height E	1460
depth F	780
height I	1380

shelves (standard \| max)	2 x 3 \| 11
max shelf workload [kg] /2/	30
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	300
weight [kg]	200
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	950
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	1540
working capacity [l]	1525
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+70
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,3
temperature variation at 37°C [+/-°C]*	1,0
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	solid / glass or double (option) /4/
interior
P Smart PRO	DIN 1.4301
PS Smart PRO	DIN 1.4301
housing
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	1440
height B	1940
depth C	1060
internal dims [mm]
width D	1270
width D’	1340
height E	1460
depth F	780
height I	1380

shelves (standard \| max)	2 x 3 \| 11
max shelf workload [kg] /2/	30
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	300
weight [kg]	200
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	950
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO
