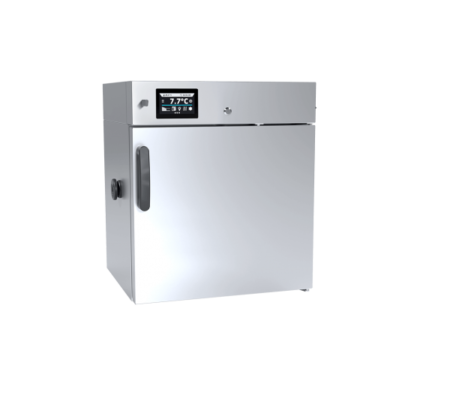

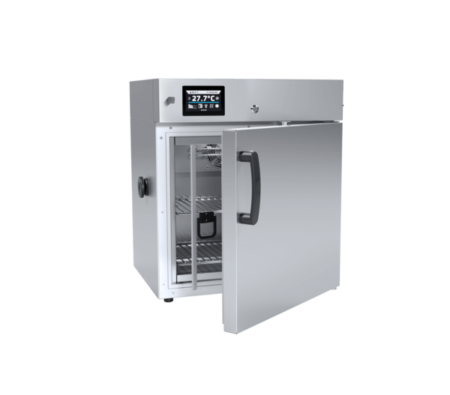

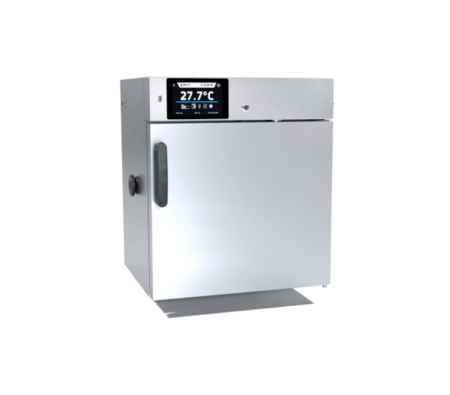

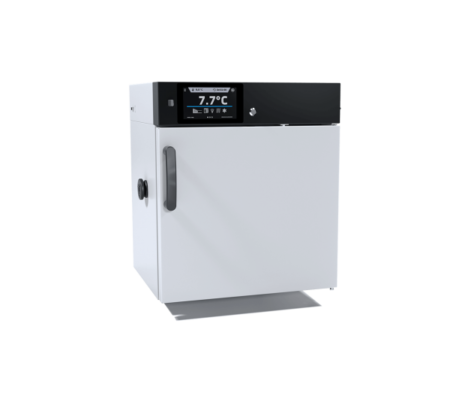

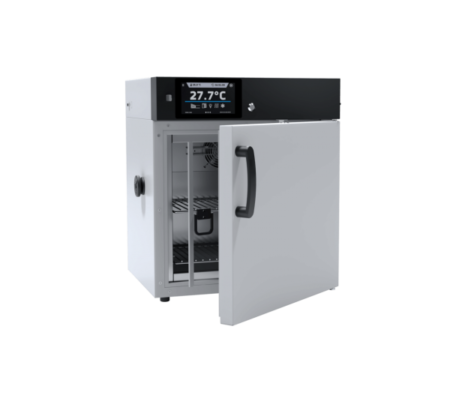

Name: ST1 Smart - Kylinkubator, 70 liter - LabTeamet
SKU: PE-ST 1-SMART

Beskrivning

ST1 Smart – Kylinkubator Volym 70liter

Standard equipment of ST 1
- temperature range +3…+40°C (+70°C in Smart PRO)
- chamber capacity 70 liters
- working capacity 55 liters
- quality control protocol (in +37°C)
- Over temperature protection 1.0 class (according to DIN 12880) for models B (basic) and C (comfort), 2.0 for models P (premium) and 3.3 class in Smart PRO
- open door alarm
- LAN port and USB port
- internal LED light
- access port to enter an external sensor (Ø30 mm) on the left side of the unit
- door lock
- wire shelves for models B (basic), stainless steel wire shelves (INOX) for models C (comfort) and P (premium)
- full external doors
- WiFi communication (only Smart Pro)
- LAN cable (only Smart Pro)
- LabDesk software for, inter alia, downloading data to computer (only Smart Pro, for Smart version – optional)
- available models: B (basic), C (comfort), P (premium)
- available controllers: Smart Or Smart PRO
Special models:

FOT – photoperiodic system – day and night simulation

Options Smart

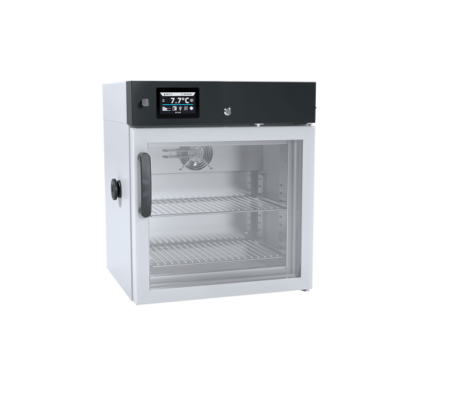

	Order number: */C	Internal glass door
	Order number: */A	External glass door
	Order number: */P	Wire shelf
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel cuvettes
	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides
	Order number: QLK*	Castors
	Order number: /S or /S INOX	Table with castors
	Order number: /ST or /S INOX	Base on castors
	Order number: *PLUS	Automatic defrosting function
	Order number: ST/70	Extended temperature range to 70°C
	Order number: */FOT	Photoperiodic system
	Order number: GNZ	Internal socket
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.3	Over temperature protection 3.2 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control

Options Smart PRO

	Order number: */C	Internal glass door
	Order number: */A	External glass door
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel cuvettes
	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides
	Order number: QLK*	Castors
	Order number: /S or /S INOX	Table with castors
	Order number: /ST or /S INOX	Base on castors
	Order number: *PLUS	Automatic defrosting function
	Order number: PT 100	Additional temperature sensor
	Order number: GNZ	Internal socket
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 60 mm
	Order number: KD	Access control
	Order number: CCTV	Camera inside the chamber
	Order number: CCTV CAM	Additional camera

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	70
working capacity [l]	55
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+40 / +70 (opcja)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,3
temperature variation at 37°C [+/-°C]*	0,5
temperature protection	class 1.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	solid / glass or double (option) /4/
interior
B Smart	aluminium
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	DIN 1.4301
PS Smart	DIN 1.4301
housing
B Smart	powder coated sheet
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	550
height B	660
depth C	680
internal dims [mm]
width D	430
width D’	470
height E	430
depth F	300
depth F’	360

shelves (standard \| max)	2 \| 2
max shelf workload [kg] /2/	10
max unit workload [kg]	20
weight [kg]	37
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	250
refrigerant	R1234ze / GWP=1
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	70
working capacity [l]	55
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+70
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,3
temperature variation at 37°C [+/-°C]*	0,5
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	solid / glass or double (option) /4/
interior
P Smart PRO	DIN 1.4301
PS Smart PRO	DIN 1.4301
housing
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	550
height B	660
depth C	680
internal dims [mm]
width D	430
width D’	470
height E	430
depth F	300
depth F’	360

shelves (standard \| max)	2 \| 2
max shelf workload [kg] /2/	10
max unit workload [kg]	20
weight [kg]	37
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	250
refrigerant	R1234ze / GWP=1
warranty	24 months
manufacturer	POL-EKO

	Produktblad – Kylinkubator Pol-Eko ST1 SMART
	Produktblad – Kylinkubator Pol-Eko ST1 SMART PRO

	Pol-Eko komplett produktkatalog
	Produktinfo SMART_SMART-PRO
