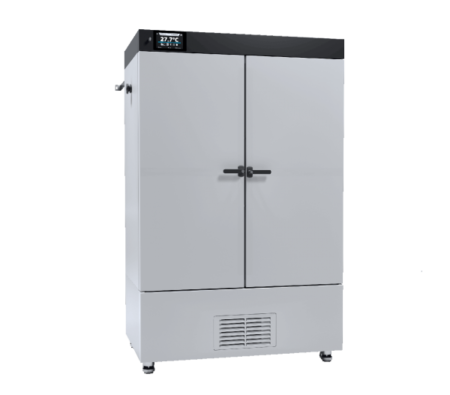

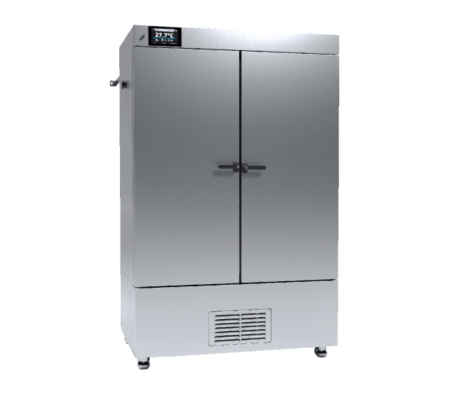

Klimatkammare / Klimatskåp 749 liter
Ring 042-300 91 30 eller maila info@labteamet.com
| Order number: */A | door with viewing window | |
| Order number: */P INOX | Stainless steel wire shelf INOX | |
| Order number: */PP | Perforated shelf | |
| Order number: */PW | Reinforced shelf | |
| Order number: KUW GN*/* | Stainless steel cuvettes | |
| Order number: FIT/R3 | FIT panels independent control | |
| Order number: GNZ | Internal socket | |
| Order number: KK/CP | Low water level sensor | |
| Order number: BRT/*/L or IQ/OQ/PQ | Calibration and IQ, OQ, PQ qualification | |
| Order number: BPP 12 | Battery backup for display | |
| Order number: PORT ALARM | Dry alarm contact | |
| Order number: USBK | USB cable | |
| Order number: LANK | LAN cable | |
| Order number: OCZ/20 | Non-standard access port 20 mm | |
| Order number: OCZ/30 | Additional access port 30 mm | |
| Order number: OCZ/60 | Non-standard access port 60 mm | |
| Order number: OCZ/100 | Non-standard access port 100 mm | |
| Order number: KK/Z | Container for deionised water | |
| Order number: KD | Access control |
| TECHNICAL DATA | |
| air convection | forced |
| chamber capacity [l] | 749 |
| working capacity [l] | 698 |
| controller | microprocessor PID |
| display | 7″ full colour touch screen |
| TEMPERATURE AND HUMIDITY | |
| temperature range [°C] | 0…+60 (with light on +10…+50) |
| temperature resolution every … [°C] | 0,1 |
| temperature variation at 25°C and 60%rH [+/-°C]* | 2,0 |
| temperature protection | class 3.3 to DIN 12880 |
| relative humidity range [%] | 30…90 (see chart for details) |
| humidity resolution every … [%] | 1,0 |
| humidity variation at 25°C and 60% rH [%rH] | 5,0 |
 |
|
| CHAMBER | |
| door type | double (external solid, internal glass) / external glass (option) |
| interior | |
| Smart PRO | acid-proof stainless steel to DIN 1.4301 |
| IG Smart PRO | acid-proof stainless steel to DIN 1.4301 |
| housing | |
| Smart PRO | powder coated sheet |
| IG Smart PRO | stainless steel linen finish |
| overall dims [mm] /1/ | |
| width A | 1260 |
| height B | 2000 |
| depth C | 1140 |
| internal dims [mm] | |
| width D | 1040 |
| height E | 1200 |
| depth F | 600 |
 |
|
| shelves (standard | max) | 5 | 16 |
| – reinforced shelf version (PW) [kg] /3/ | 100 |
| max unit workload [kg] | 140 |
| weight [kg] | 275 |
| ELECTRICAL PARAMETERS | |
| voltage** | 230V 50-60Hz |
| nominal power [W] | 3350 |
| refrigerant | R290 / GWP=3 |
| warranty | 24 months |
all the above technical data refer to standard units (without optional accessories)
* – variation (K) calculated for chamber as: K= +/- (T average max. – T average min.) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
 |
Produktblad – Klimatkammare Pol-Eko KK750 FIT P SMART PRO |
|
Pol-Eko komplett produktkatalog |
 |
Produktinfo SMART_SMART-PRO |
